Instruction manual V 1.3 – 12/2003

5.2 Setting up the instrument parameters

From the start screen, press MENU to go to the MENU FUNCTIONS

screen, then press MORE.

In the MORE MENU FUNCTIONS screen, press SYSTEM SETUP.

5.2.1 System setup

→

5. Operation

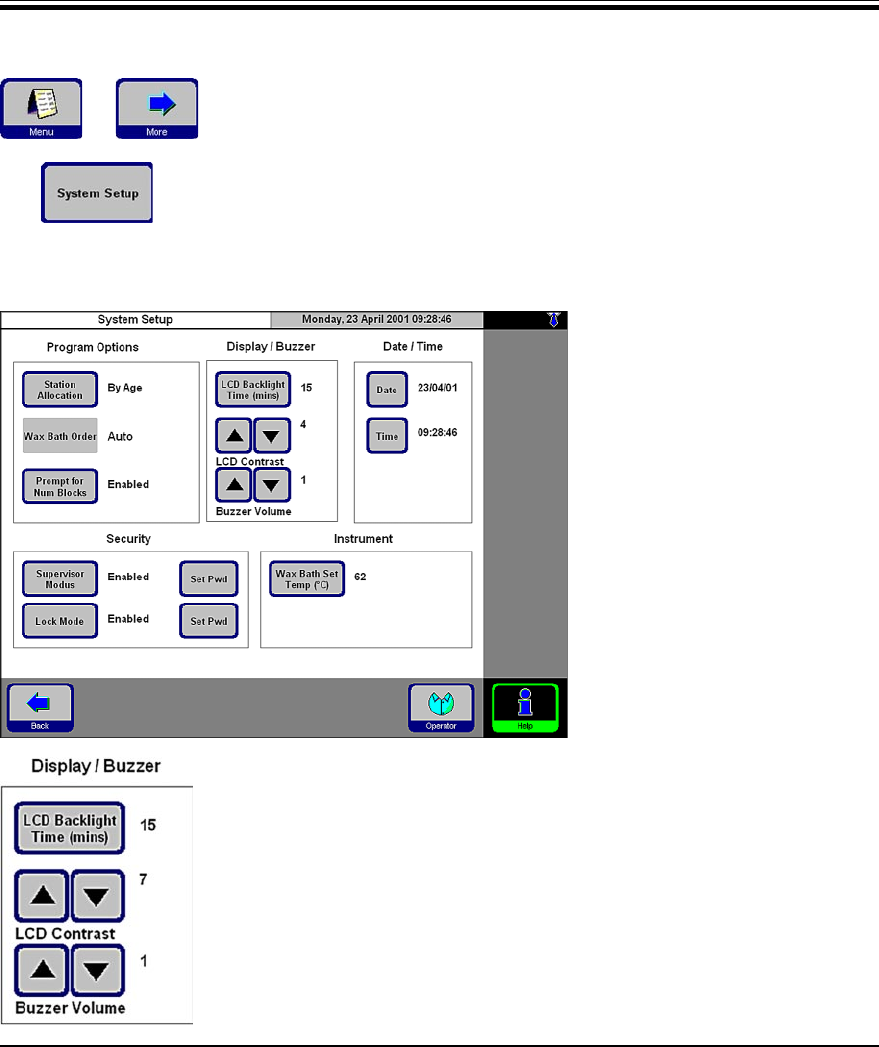

SYSTEM SETUP screen

(Fig. 17).

The DISPLAY/BUZZER field is practically self-explanatory:

• The number next to DISPLAY OFF indicates the remaining time (in min)

until the screen saver (after the last user action) is activated.

• LCD CONTRAST can be set from 0 to 14.

• The BUZZER VOLUME can be set between 1 and 10.

Fig. 17
